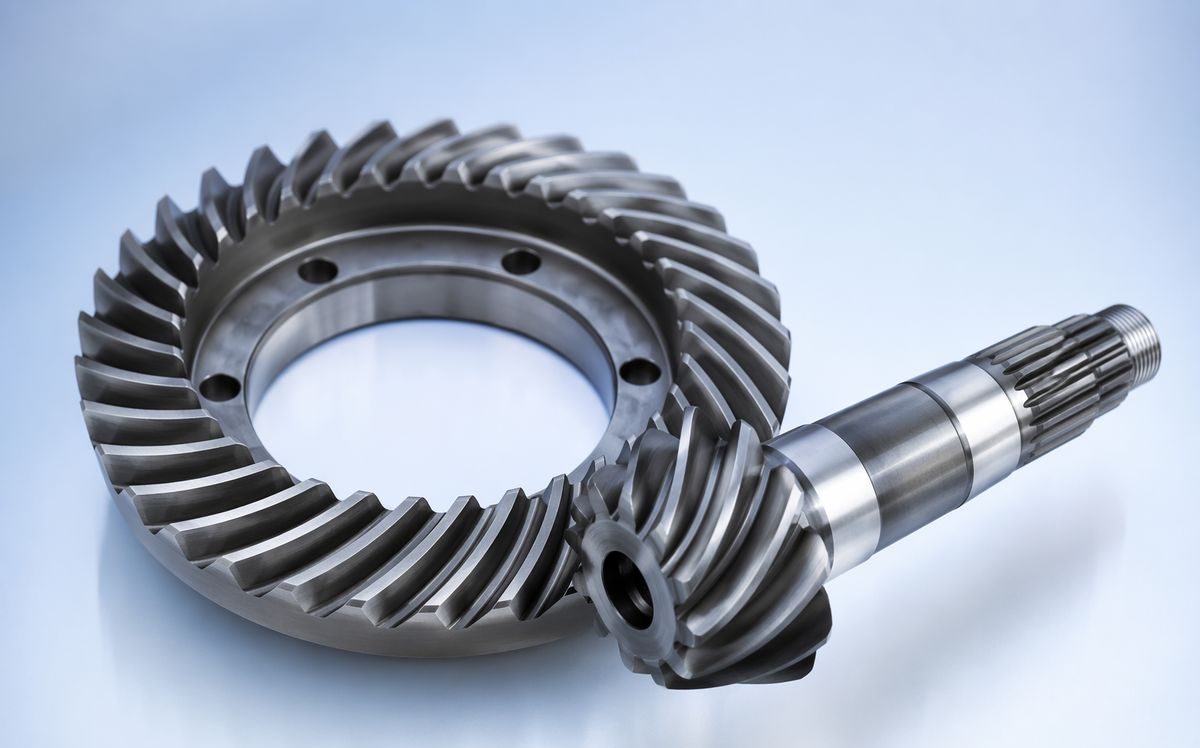

Custom Bevel Gears
Bevel gear and mating-pair inquiries reviewed around shaft angle, ratio, contact pattern, and duty cycle.
Engineering review
SINOF evaluates the complete geometry and application context before confirming whether a bevel gear project is suitable.
- Straight and spiral bevel concepts evaluated
- Matched crown-wheel and pinion data reviewed together
- Shaft-angle and mounting requirements considered
- Contact and acceptance criteria agreed before production
Materials and precision
Gear quality, contact requirements, and inspection method are confirmed after technical review.
- Alloy and carbon steels selected against duty
- Stainless grades evaluated for environmental needs
- Alternative materials reviewed case by case
Customization inputs
- Ratio, shaft angle, and tooth geometry
- Bore, spline, hub, and mounting features
- Heat treatment and surface finishing
- Matched-pair marking and inspection documentation
Inspection
- Critical dimensions checked against the released drawing
- Runout and mounting datum verification
- Tooth-contact or gear-geometry inspection when specified
Frequently asked questions
Do you need both members of a bevel gear pair?
Complete data for both mating members is strongly preferred because ratio, mounting distance, backlash, and contact behavior are interdependent.
Can an existing bevel gear be reproduced from a sample?
A sample can help a feasibility review, but production should be based on controlled geometry and mutually agreed acceptance criteria.
