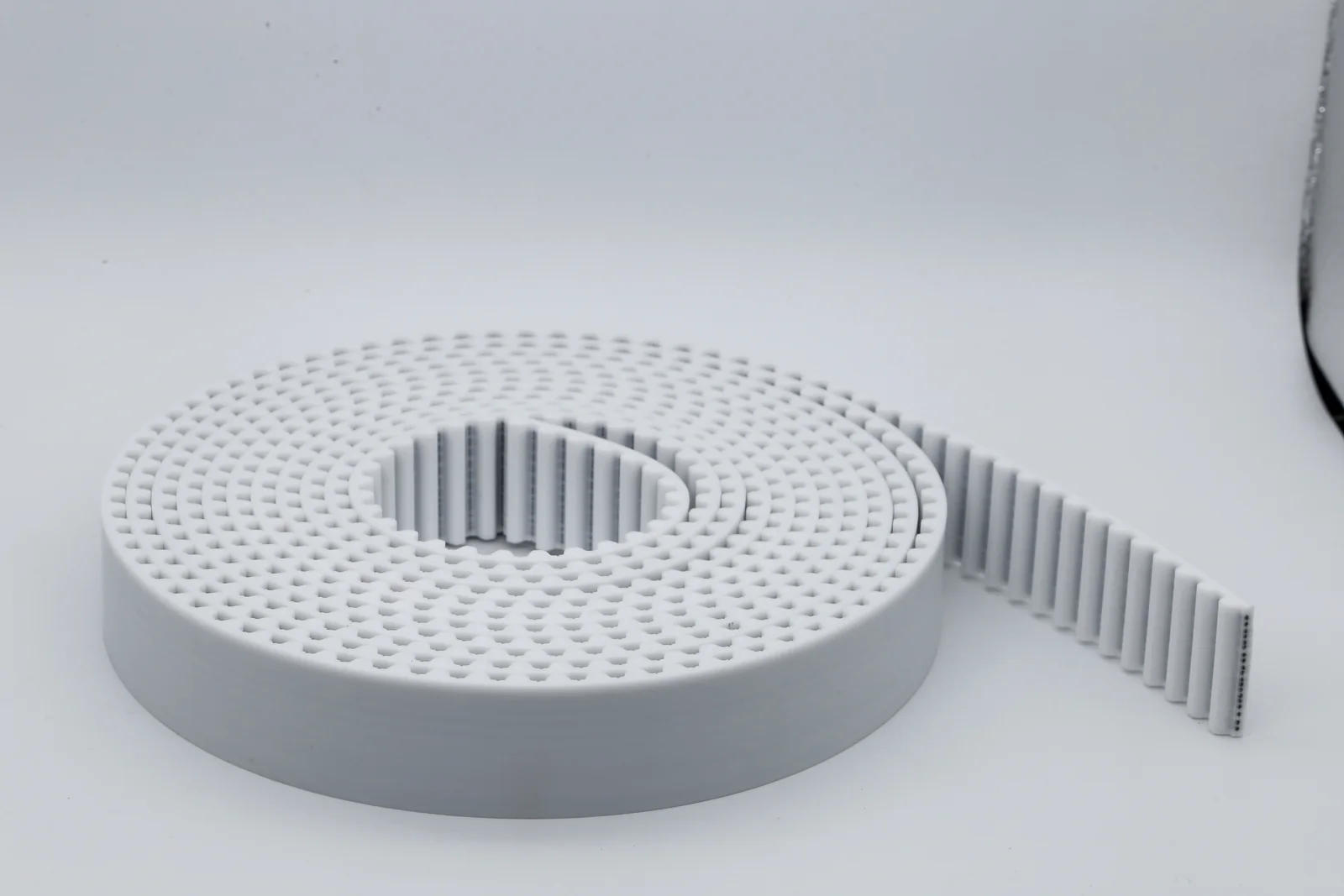

Polyurethane Timing Belts
Polyurethane timing belts configured for synchronous conveying, positioning, and industrial drive requirements.
Engineering review
Profile, tensile member, belt form, surface features, and operating conditions are reviewed together before quotation.
- T2.5, T5, T10, T20 and AT3, AT5, AT10 profiles
- MXL, XL, L, H, XH and HTD 3M, 5M, 8M, 14M profiles
- S5M, S8M, S14M and TK5, TK10, ATK5, ATK10 profiles
- Optional cleats, guides, holes, coatings, and foam subject to application review
Materials and precision
Profile, pitch, width, length, tracking features, and application acceptance criteria are agreed before supply.
- Polyurethane belt body
- Steel-cord and alternative tensile-member constructions reviewed by application
Customization inputs
- Endless or open-ended belt form
- Cleats, guides, holes, coatings, and foam
- Profile, width, length, and tensile-member selection
- Matched pulley and conveying-layout review
Inspection
- Profile, width, length, and visible-condition checks
- Cleat, guide, hole, or coating layout checked against the released specification
- Project-specific inspection records agreed during quotation
Frequently asked questions
Can cleats or guides be added to polyurethane timing belts?
Cleats, guides, holes, coatings, and foam can be reviewed when their geometry, spacing, orientation, and operating purpose are provided.
Which profile and tensile member should be selected?
Selection depends on load, speed, pulley geometry, positioning needs, environment, and belt layout. Please share the complete application data.
